SKU: SY992G4
(0)

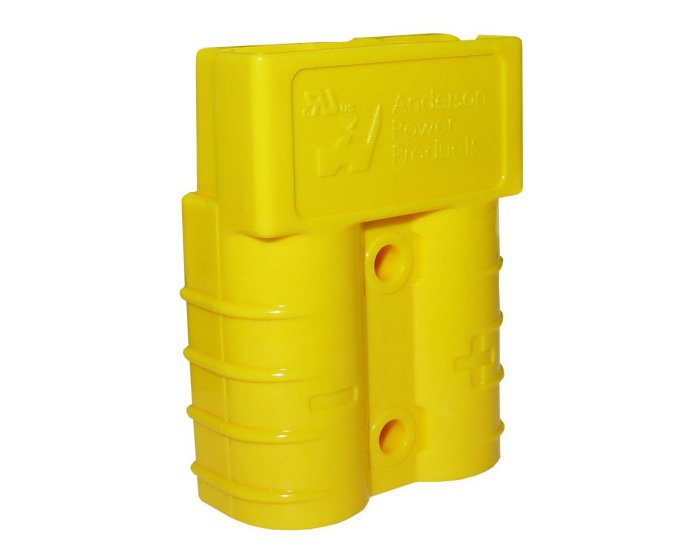

SB 50 Connector Yellow Housing

uSource Parts
In stock
$3.25

Secure checkout

Friendly support

Hassle-free returns

  • The smallest SB® housings work with wire contacts up to 6 AWG [10 mm²] as well as PCB, and busbar contacts.
  • Genderless design mates with itself. Mechanical keys are color coded.
  • SB®50 connectors feature a one piece plastic housing using stainless steel springs to hold low resistance contacts in place.
  • Wires sizes from #16 (1.5 mm²) to #6 (13.3 mm²) are held in the smallest of the SB® series housings.
  • Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
  • UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
  • Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
